ANUTRON-2203 PVC is impervious to a large number of chemicals. It has excellent resistance to mineral acids, alkalis, plating solutions, paper making chemicals and most other inorganic solutions. Also, against alcohols, aliphatic hydrocarbons- glycols, amines, aromatic hydrocarbons, chlorinated solvents, some other esters and ethers.
ANUTRON-2203 have self-extinguishing properties and comply with the most demanding international fire retardance standards defined in the field of plastics. Low thermal and electrical conductivity level enhance ANUTRON-2203 safety performance in industrial environments. Its resistance to bending and impact enables wide range of applications and large frame mounting.
ANUTRON-2203 has excellent machinability and can be shaped & tooled by means of both heat or cold treatment while retaining its essential characteristics. Its excellent weldability increases is possibility for wider uses.

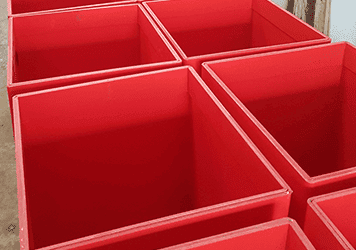

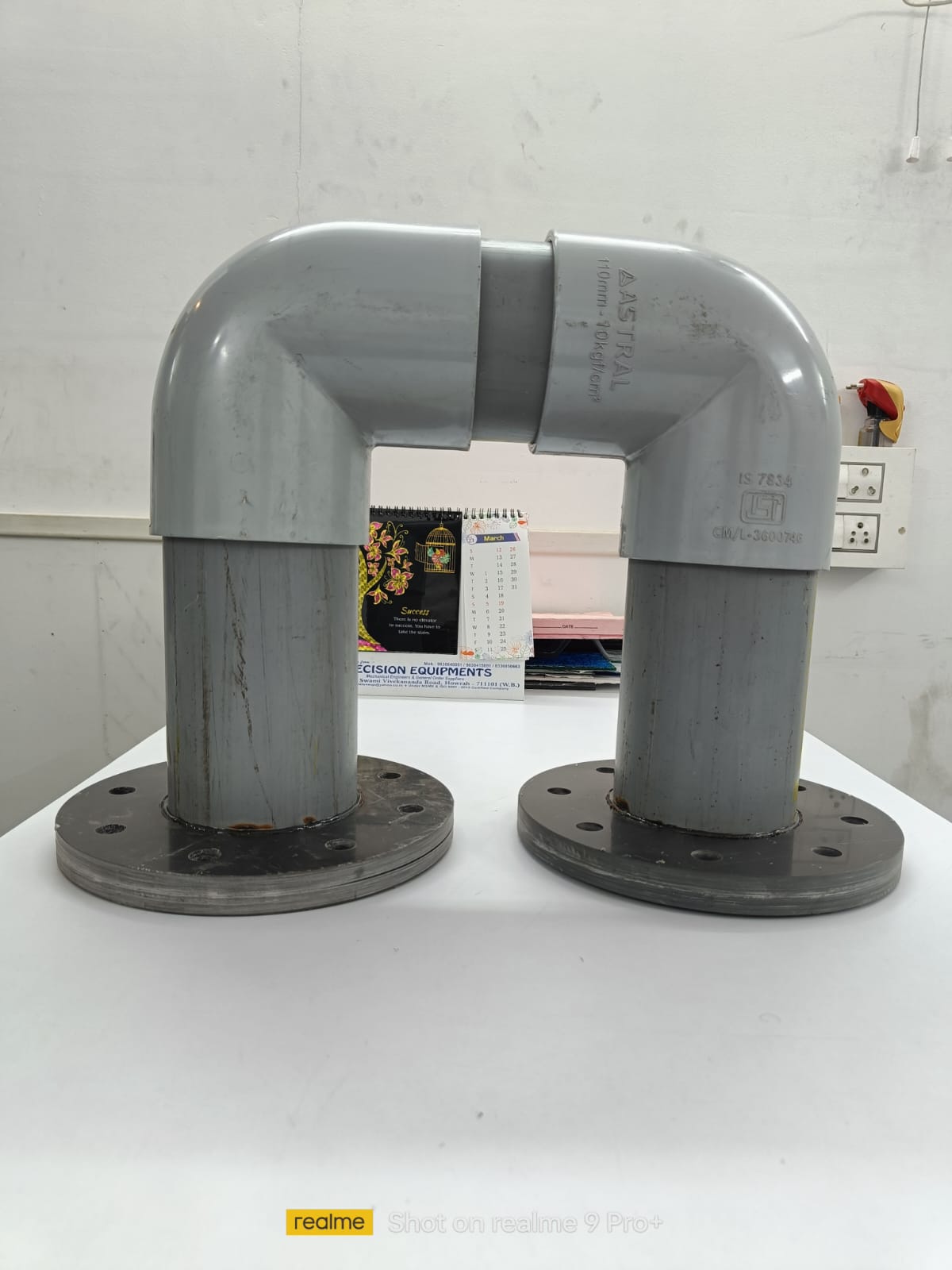

ANUTRON-2203 are available in form of Sheets both opaque and transparent, rods, pipe fittings etc which helps to achieve desire shapes.
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Specific Gravity | gm/cc | ASTM D 792 | 1.35 - 1.5 |
| Tensile strength | Kgf/cm² | ASTM D 638 | 470-710 |
| Compressive Strength | Kgf/cm² | ASTM D 695 | 800 |
| E Module | Kgf/cm² | ASTM D 638 | 30,000 |
| Bending Strength | Kgf/cm² | 800-1000 | |
| Impact strength | No-Break | ||
| Impact strength (Izod Notch) at 23 C | KJ/m² | ASTM D 256 | 02-Apr |
| Water Absorpion for 24 hrs | % | ASTM D 638 | <0.01 |
| Hardness Durometer at 23 C | Shore D | ASTM D 2240 | 80-99 |
| Co-efficient of friction against steel dry | ASTM D 3702 | 0.5 | |
| Softening Point Vicat | °C | ASTM D 1525 | 75-80 |
| Deflection temperature at 4.6Kgf/cm (66 psi) (HDT) | °C | ASTM D 648 | 155--165 |
| Melting Point | °C | ASTM D 3418 | 120-130 |
| Maximum service temperature | |||
| Continuous | °C | 65 | |
| Intermittent | °C | 70 | |
| Co-efficient of Linear Expantion | (per °C) x 10⁶ | ASTM D 696 | 80 |
| Thermal Conductivity | Cal/Sec/cm/°C x10ˉ⁴ | ASTM C 177 | 3.5-4.0 |
| Specific Heat | 0.2-0.3 | ||
| Flammability | Cal / °C/ gm | ASTM D 635 | Non Flammable |
| Dielectric Constant | 10⁶ Cycle/Sec | ASTM D 449 | 3.0-3.5 |
| Dielectric Strength | Kv/mm | ˃8 | |
| Volume Resistisity at 50% RH | Ohms/cm | ASTM D 527 | >10¹³ |
| Dissipating (Power) Factor | 10⁸ Cycle/ sec | ASTM D 150 | <0.01 to 0.03 |
