ANUTRON-0605 PTFE (TEFLON)

ANUTRON-0605

AN ENGINEERING THERMOPLASTIC FOR CHEMICAL APPLICATIONS

ANUTRON-0605 is an inert, non-toxic material well known for its remarkable properties, such as, self lubrication, non adherence, noninflammability and immunity to chemicals or solvents. Its dielectric constant and loss factor are low and stable across a wide temperature and frequency range. Impact strength is high but tensile strength, wear resistance and creep resistance are low in comparison with other engineering plastics. Glass, bronze, carbon and graphite are sometimes added to improve specific mechanical properties to suit individual application. Its coefficient of friction is lower than almost any other material. Having excellent thermal properties, it has a wide working temperature range from -80° C 0 to 250° C

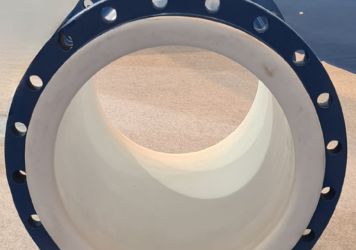

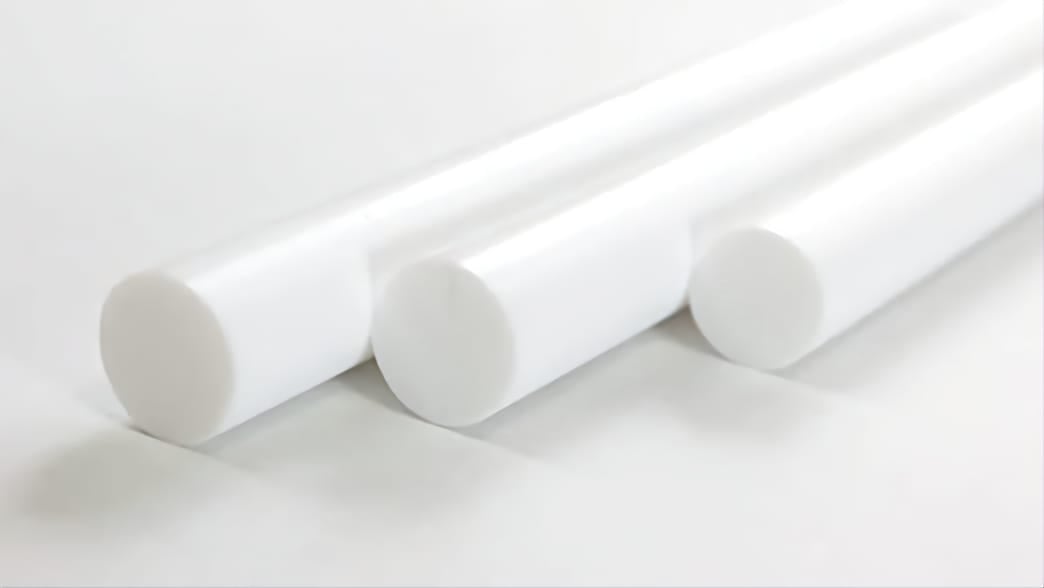

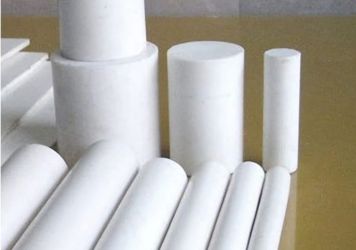

ANUTRON-0605 is available in form of rods, sheets, bushings, square and rectangular bars, tubings, machined and fabricated components.

PROPERTIES OF ANUTRON-0605

Property	Unit	Test Method	Value
Specific Gravity	gm/cc	ASTM D792	2.21
Combsutibility			Non- combustable
Tensile strength	mPa	ASTM D638	15-35
Elongation at Break	%	ASTM D638	150-350
Hardness Durometer at 23° C	Shore D	ASTM D2240	55-64
Co-efficient of friction		ASTM D3702
against polished steel dry			0.06-0,08
Melting Point	°C	ASTM D 3418	327
Dimension stability under heat/ HDT	°C	ASTM D648	50-60
Thermal Conductivity at 23°C	W/k.m	ASTM C 177	0.23
Specific Heat at 23°C	KJ/Kg.k		1.01
Oxygen Index	%		>95
Dielectric Strength	Kv/mm	ASTM D648	40-80
Arc Strength	sec	ASTM D495	>360
Surface Registivity	Ohm	ICE 93+167	10 17
Volume Resistivity	Ohm.cm	ICE 93+167	10 18
Creep Resistance		ASTM D3638	KA3c
Dissipation Factor at 10 3Hz at 10 3Hz	10ˉ4	ASTM B633	2.0-2.1

** THE ABOVE INFORMATION IS GIVEN IN GOOD FAITH BUT WITHOUT ANY GUARANTEE **
