ANUTRON-1605 HIGH DENSITY POLYETHYLENE (HDPE)

ANUTRON-1605 HIGH DENSITY POLYETHYLENE (HDPE)

AN EXCELLENT CHEMICAL RESISTANCE THERMOPLASTIC

ANUTRON-1605 High Density Polyethylene (HDPE) is a highly crystalline, nonpolar thermoplastic polyolefin. It is highly resistant to most household and industrial chemicals thus it ANUTRON-1605 pipes, pipe fittings, valves and tank are used for transportation and storage of such chemicals. It does not absorb moisture and provides good water vapour barrier, which makes its useful for lining application. With high toughness & good stiffness ANUTRON-1605 is high resistance to stress cracking against organic and industrial applications. ANUTRON-1605 has excellent chemical resistance properties that opens its way for inorganic media.

ANUTRON-1605 High Density Polyethylene (HDPE) is a highly crystalline, nonpolar thermoplastic polyolefin. It is highly resistant to most household and industrial chemicals thus it ANUTRON-1605 pipes, pipe fittings, valves and tank are used for transportation and storage of such chemicals. It does not absorb moisture and provides good water vapour barrier, which makes its useful for lining application. With high toughness & good stiffness ANUTRON-1605 is high resistance to stress cracking against organic and industrial applications. ANUTRON-1605 has excellent chemical resistance properties that opens its way for inorganic media.

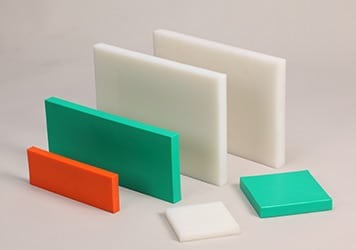

ANUTRON-1605 is available as stock item in basic shapes (Rods, Sheets, Blocks, Squares and Rectangular Bars) with machining instructions. It is also available as Pipe, Fittings, Valves.

PROPERTIES OF ANUTRON-1605

Property	Unit	Test Method	Value
Specific Gravity	gm/cc	ASTM D 792	0.96-0.98
Tensile strength	Kgf/cm²	ASTM D 638	215-400
Elongation at break	%	ASTM D 638	50-600
Compressive Strength	Kgf/cm²	ASTM D 695	169
Modulus of Elasticity (Dry)	Kgf/cm²	ASTM D 638	11,000
Bending Strength	Kgf/cm²		380
Impact strength			No-Break
Impact strength (Izod Notch) at 23 C	KJ/m²	ASTM D 256	7
Water Absorpion for 24 hrs	%	ASTM D 570	<0.01
Hardness Durometer at 23 C	Shore D	ASTM D 2240	60-70
Co-efficient of friction			ASTM D 3702
against steel dry			0.45
Softening Point Vicat	°C	ASTM D 1525	127
Melting Point	°C	ASTM D 3418	165
Maximum service temperature
Continuous	°C		90
Intermittent	°C		100
Co-efficient of Linear Expantion	(per °C) x 10⁶	ASTM D 696	200
Thermal Conductivity	Cal/Sec/cm/°C x10ˉ⁴	ASTM C 177	11-12.4
Specific Heat			0.53-0.55
Flammability	Cal / °C/ gm	ASTM D 635	Very Slow
Dielectric Constant	10⁶ Cycle/Sec	ASTM D 449	2.25-2.35
Dielectric Strength	Kv/mm		˃8
Volume Resistisity at 50% RH	Ohms/cm	ASTM D 527	>10¹⁶
Dissipating (Power) Factor	10⁸ Cycle/ sec	ASTM D 150	<0.0003
