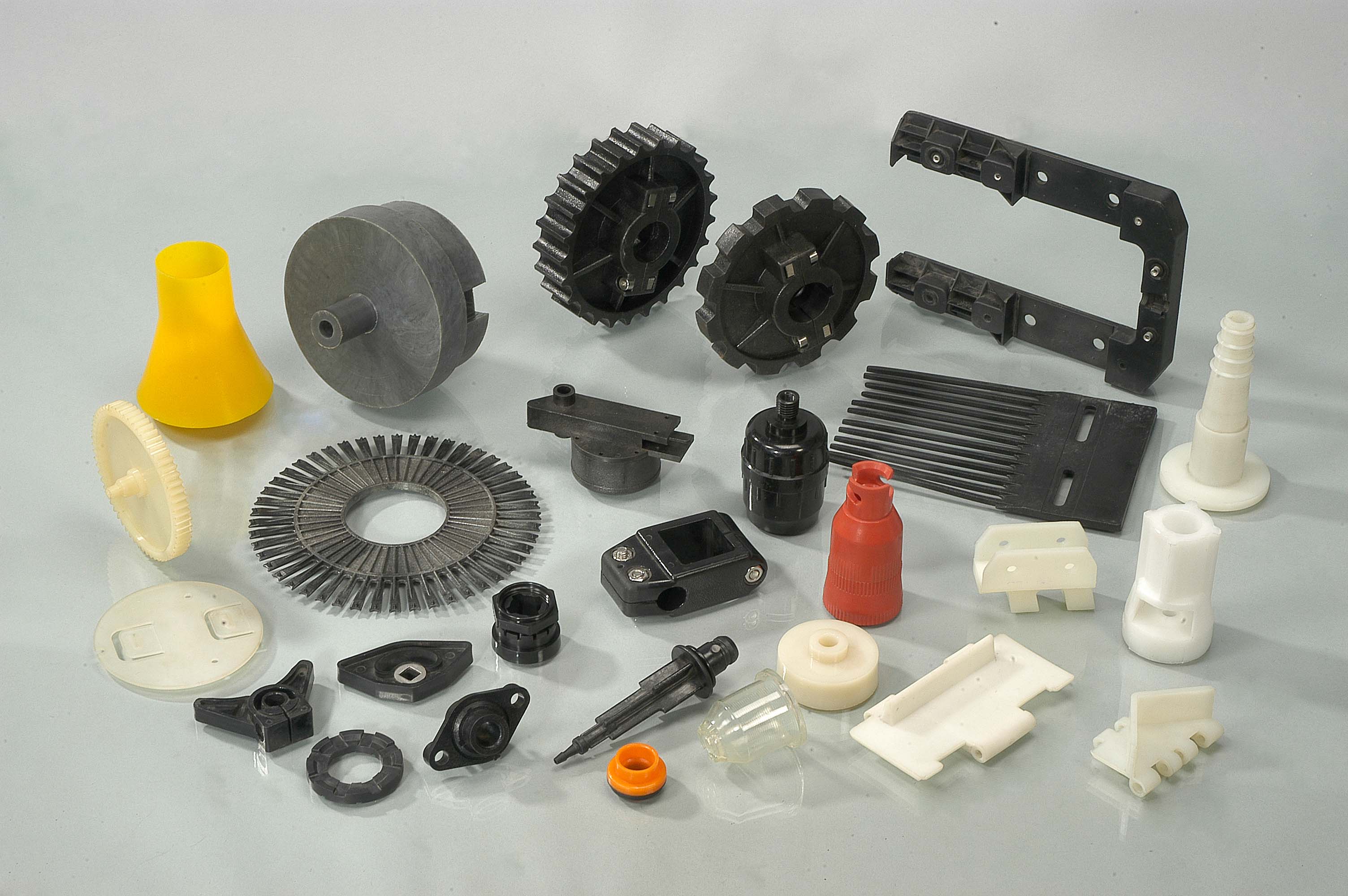

ANUTRON-1425 is a most versatile Engineering Thermoplastic. ANUTRON-1425 is processed from very high viscosity raw material in the semi finished form of rods, rectangular and square bars, tubes and mould finished components. Due to low coefficient of friction against ferrous and non-ferrous metals, it has successfully replaced steel, cast iron, gunmetal, phosphor bronze in various applications such as bushings, gears, sprockets, rollers, picking cones, pulleys etc. giving trouble free service with minimum maintenance and even without external lubrication
ANUTRON-1425 plays a predominant role in the market to replace metal where it provides improve performance at reduced cost. Engineers and designers are looking to ANUTRON-1425 as asubstitute design material in place of conventional ferrous and non ferrous materials.

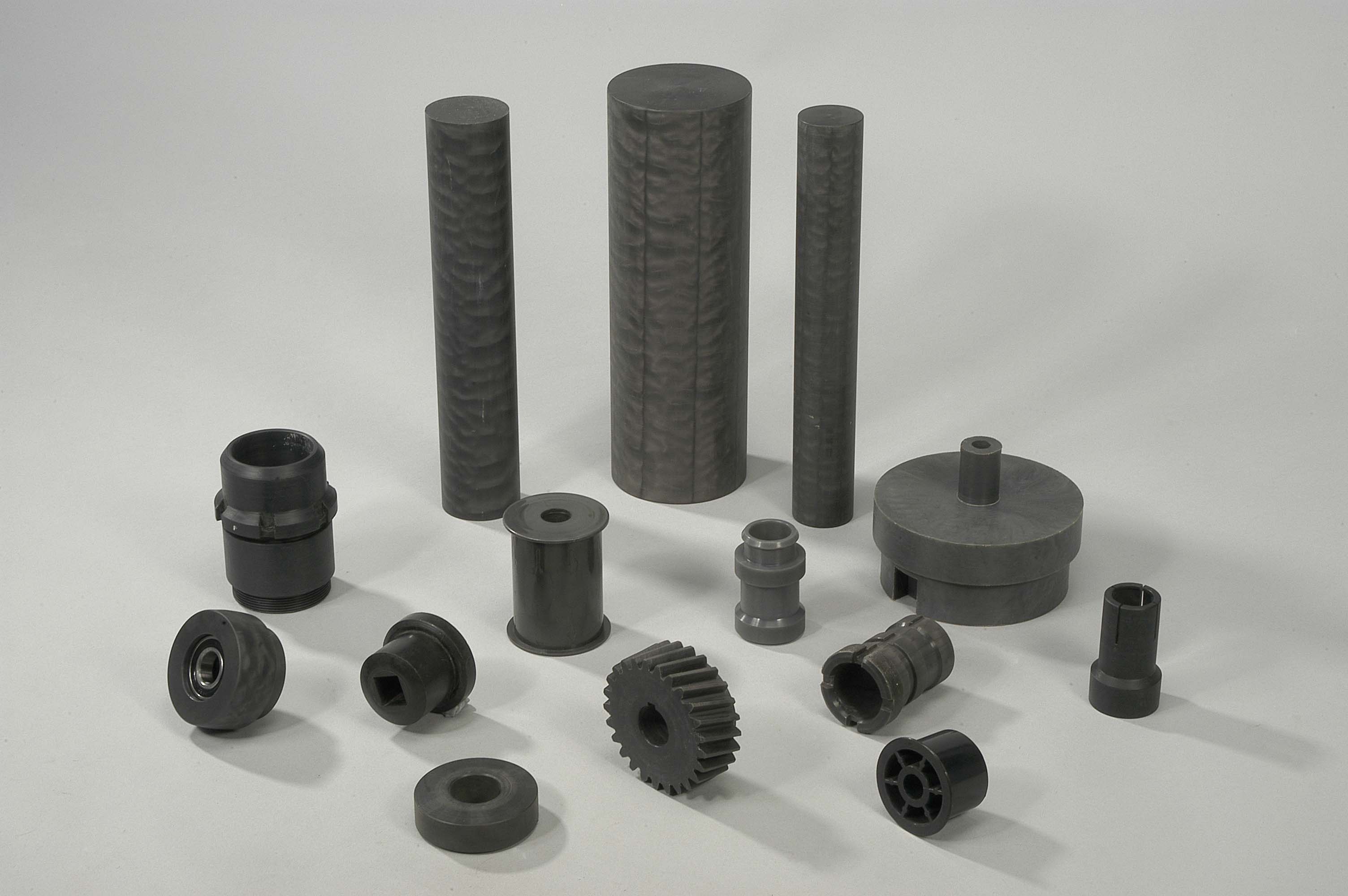

ANUTRON 1425 M Grade extruded PA6 with controlled percentage of Molybdenum Di-Sulphide (MOS₂ ) increases slip bearing properties, stiffness and wear resistance.

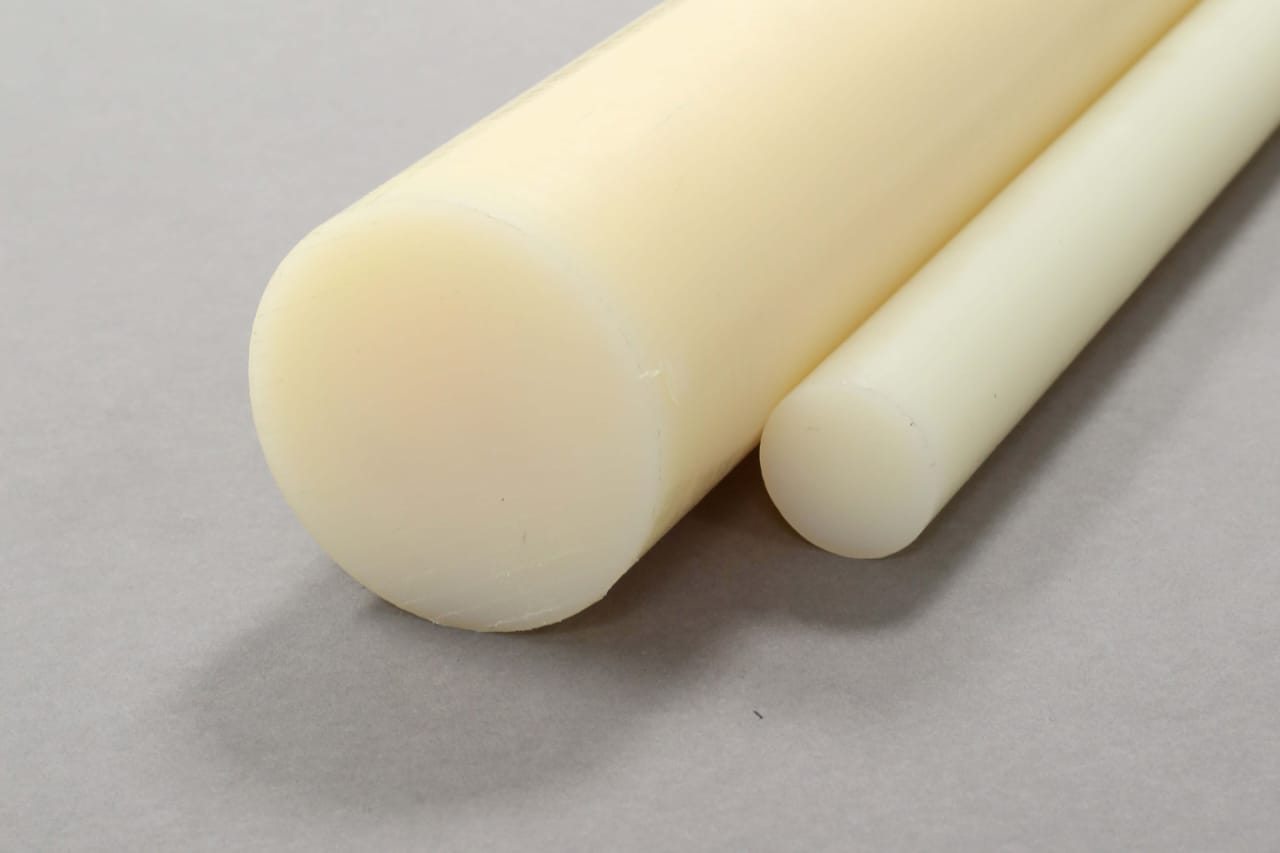

ANUTRON-1425 is available as stock item in basic shapes (Rods, Sheets, Blocks, Squares and Rectangular Bars) with machining instructions and moulded components
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Specific Gravity | gm/cc | ASTM D 792 | 1.14 - 1.15 |
| Tensile strength at yield (Dry) | Kgf/cm² | ASTM D 638 | 717 |
| Tensile strength at yield (Moist) | Kgf/cm² | ASTM D 638 | 560 |
| Elongation at break (Dry) | % | ASTM D 638 | 33--40 |
| Elongation at break (Moist) | % | ASTM D 638 | 26 |
| Compressive Strength at yield | Kgf/cm² | ASTM D 695 | 1237 |
| Modulus of Elasticity (Dry) | Kgf/cm² | ASTM D 638 | 15,503 |
| Modulus of Elasticity (Moist) | Kgf/cm² | ASTM D 638 | 15,212 |
| Impact strength (Izod) at 23 C | KJ/m² | ASTM D 256 | 5.4 |
| Hardness Durometer at 23 C | Shore D | ASTM D 2240 | 70--80 |
| Maximum service temperature | |||
| Continuous | °C | 90 | |
| Intermittent | °C | 130 | |
| Melting Point | °C | ASTM D 3418 | 210--220 |
| Co-efficient of friction | ASTM D 3702 | ||
| against self | 0.40-0.50 | ||
| against polished steel dry | 0.25-0.30 | ||
| against polished steel lubricated | 0.08-0.15 | ||
| Flammability | ASTM D 149 | Self Extinguishing |
